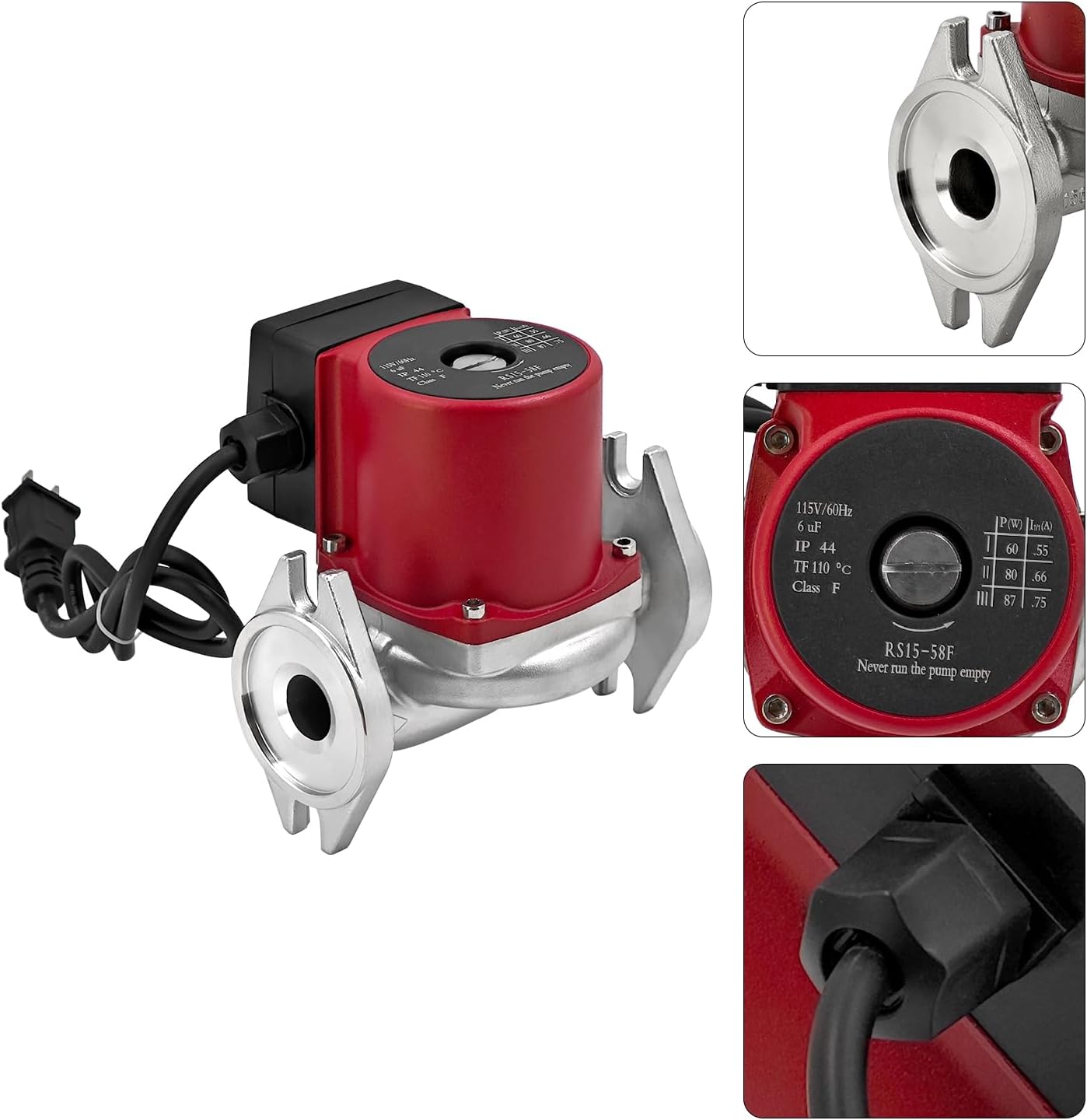

Upgraded Stainless Steel Three-Speed Circulator Pump Replacement for Grundfos UPS15-58FC Nonsubmersible Circulation Pump 1/25HP 115V 17GPM Replace# 59896341

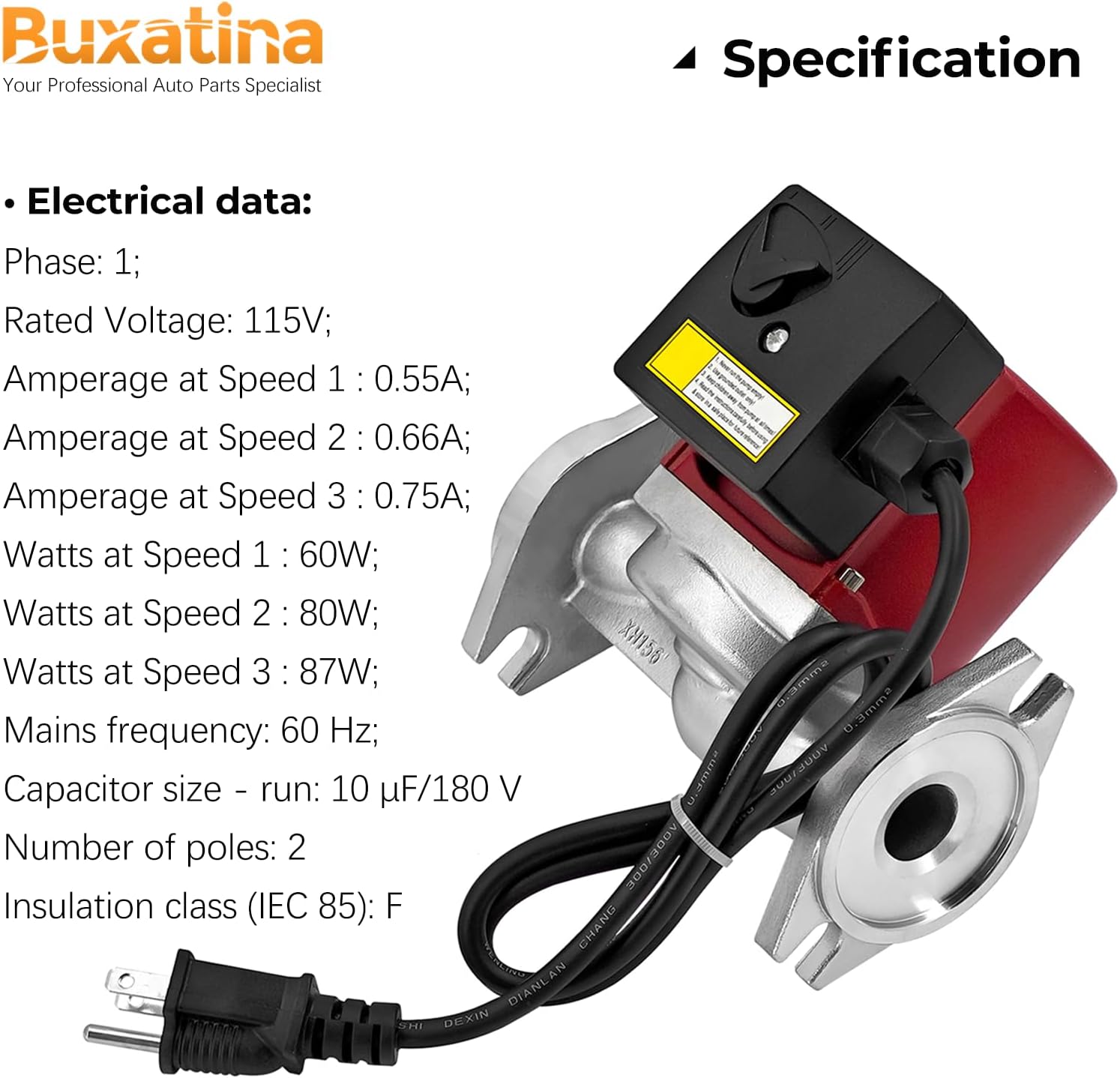

【COMPATIBLE WITH】 Replacement for Grundfos UPS15-58FC; Replacement Number: 59896341;Suitable for commercial heating and air-conditioning systems and is also used for central and district heating systems.【PACKAGE LIST & SPECIFICATION】 Package Includes:1 pcs x Upgraded Stainless Steel Three-Speed Circulator Pump;1 set x Mounting Accessories;Materials：Pump housing: Cast iron (EN 1561 EN-GJL-200) + Stainless Steel；Impeller: Composite (PES+30% GF)；Shaft: Ceramic；Bearing: Carbon Axial； Technical:Speed no: 3Rated flow: 1.93 m³/hMax flow: 3.9 m³/hFlow Range: 0-17 GPM (Gallons Per Minute);Rated head: 3.19 mMax head: 5.9 mHead Range: 0-19.5 ft;Horse Power: 1/25HP Electrical dataPhase: 1;Rated Voltage: 115V;Amperage at Speed 1 : 0.55A;Amperage at Speed 2 : 0.66A;Amperage at Speed 3 : 0.75A;Watts at Speed 1 : 60W;Watts at Speed 2 : 80W;Watts at Speed 3 : 87W;Mains frequency: 60 Hz;Capacitor size - run: 10 µF/180 VNumber of poles: 2Insulation class (IEC 85): F LiquidPumped liquid: Water;Liquid temperature range: 2~110 °C;Selected liquid temperature: 60 °CDensity: 983.2 kg/m³【Installation】Max ambient temperature: 40 °C;Amb. max at 80 dgr C liquid: 80 °C;Max operating pressure: 10 bar (145 Psi);Type of connection: 2-BOLT FLANGE (Stainless Steel Flange);Pipe connection: 2-BOLT FLANGE;Pressure rating for connection: PN 10;Port-to-port length: 166 mm;【EXCELLENT PERFORMANCE】Built-in motor protection for longer life and better performance.Whisper-quiet operation for sound sensitive installations.【REST ASSURED OF QUALITY】This Upgraded Stainless Steel 3-Speed Circulator Pump is factory p-roven. We will be responsible for dealing with them if the product has any quality problems within 1 year

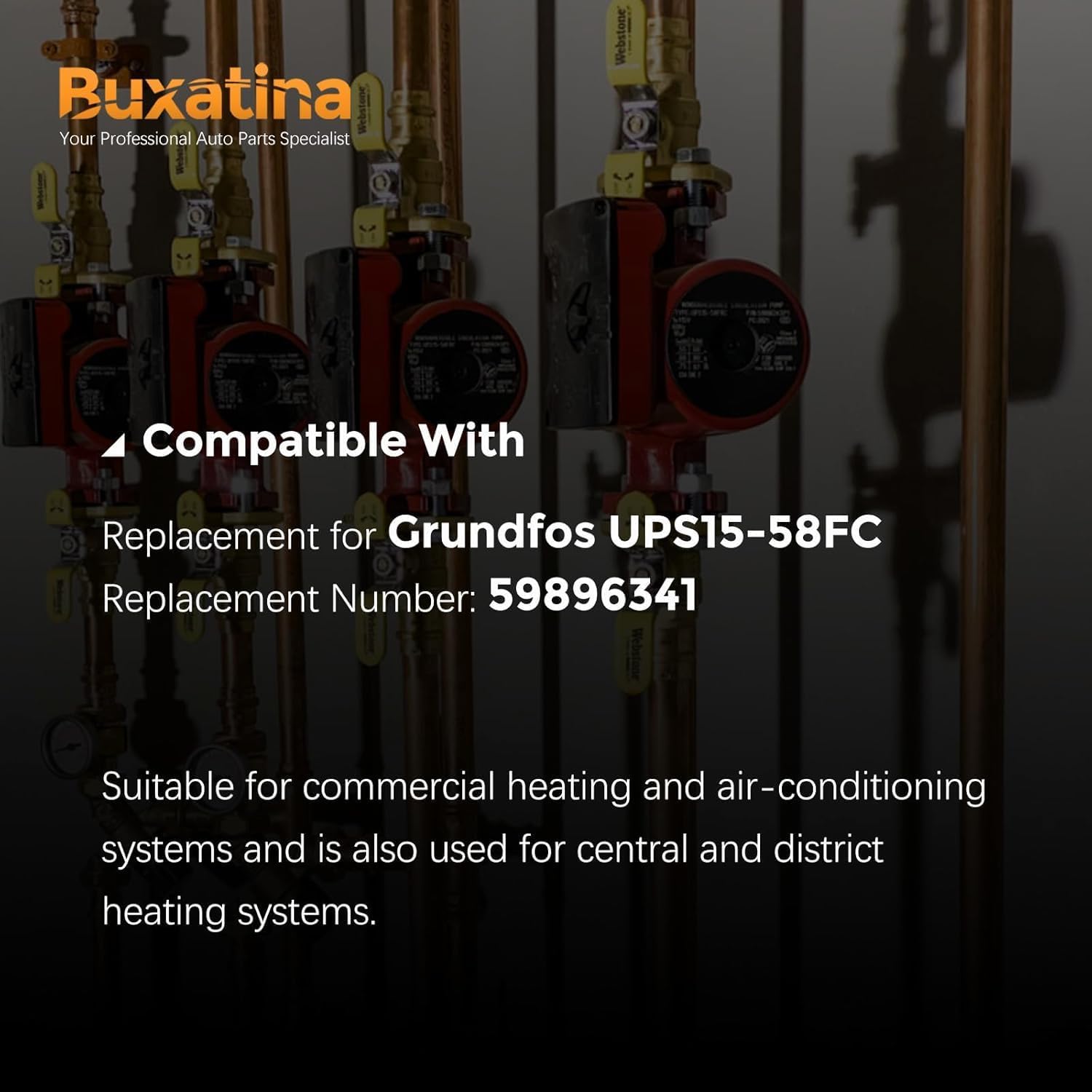

• 【COMPATIBLE WITH】 Replacement for Grundfos UPS15-58FC; Replacement Number: 59896341; Suitable for commercial heating and air-conditioning systems and is also used for central and district heating systems.

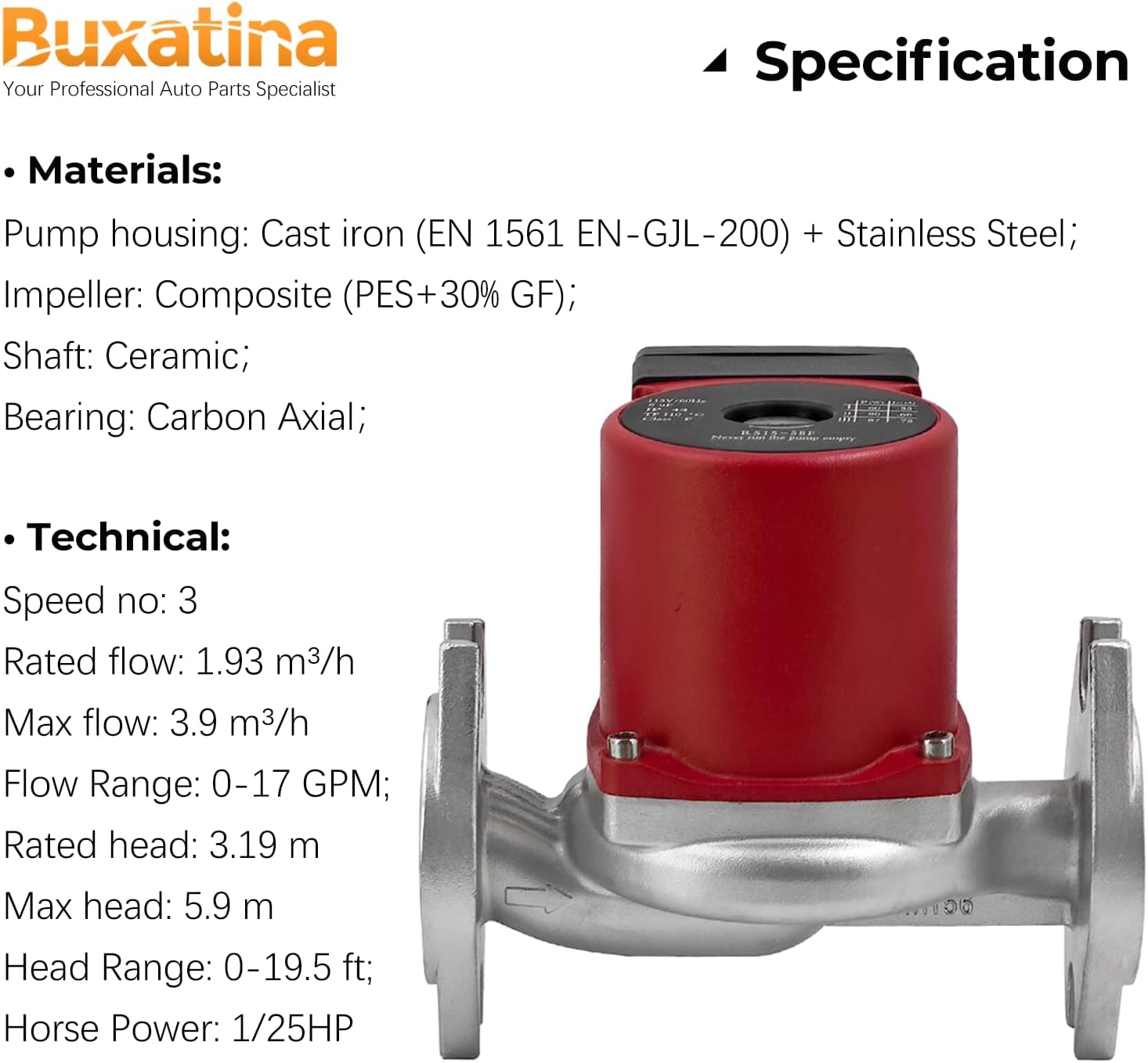

• 【PACKAGE LIST & SPECIFICATION】 Package Includes: 1 pcs x Upgraded Stainless Steel Three-Speed Circulator Pump; 1 set x Mounting Accessories; Materials： Pump housing: Cast iron (EN 1561 EN-GJL-200) + Stainless Steel； Impeller: Composite (PES+30% GF)； Shaft: Ceramic； Bearing: Carbon Axial； Technical: Speed no: 3 Rated flow: 1.93 m³/h Max flow: 3.9 m³/h Flow Range: 0-17 GPM (Gallons Per Minute); Rated head: 3.19 m Max head: 5.9 m Head Range: 0-19.5 ft; Horse Power: 1/25HP
• 【Installation】 Max ambient temperature: 40 °C; Amb. max at 80 dgr C liquid: 80 °C; Max operating pressure: 10 bar (145 Psi); Type of connection: 2-BOLT FLANGE (Stainless Steel Flange); Pipe connection: 2-BOLT FLANGE; Pressure rating for connection: PN 10; Port-to-port length: 166 mm;
• 【EXCELLENT PERFORMANCE】 Built-in motor protection for longer life and better performance. Whisper-quiet operation for sound sensitive installations.
• 【REST ASSURED OF QUALITY】 This Upgraded Stainless Steel 3-Speed Circulator Pump is factory p-roven. We will be responsible for dealing with them if the product has any quality problems within 1 year.
